Description

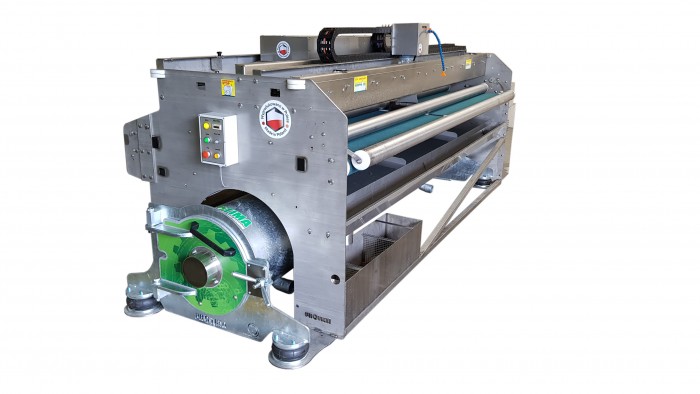

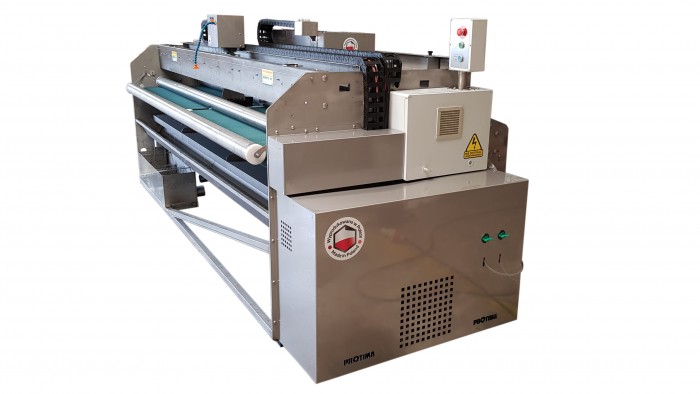

Automatic Rug Washing Machine Economic ASZ-3000 is a 2-in-1 machine designed to be used in combination with the Tornado WS-3200-55 spin dryer.
The machine combines the two most important functions: washing and rinsing, and carpet spinning after cleaning. Every square foot of carpet is valuable, and this model helps save a lot of space in the laundry. The Economic ASZ-3000 2-in-1 eliminates the need for shifting and moving cleaned wet carpets.

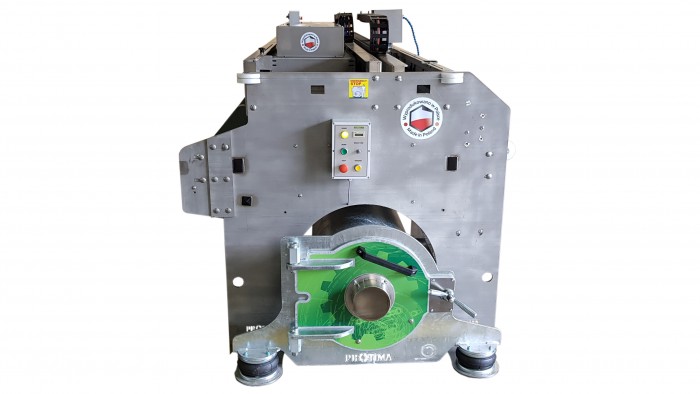

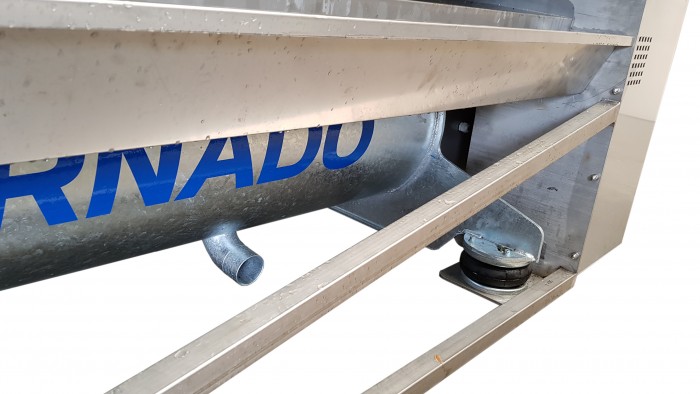

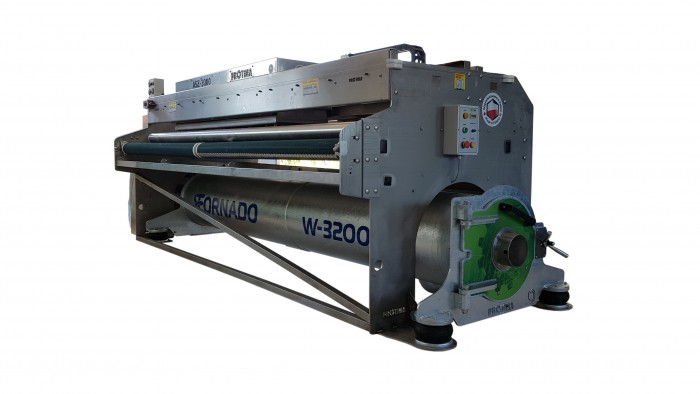

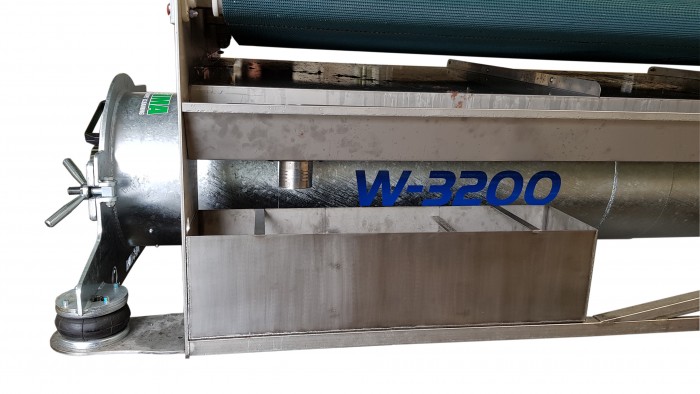

In the upper part of the machine, there are sections for carpet washing after their previous full immersion in Wash Tubs Tornado MP-3000 / Tornado P-3300 or for dry rugs just after dust removal. At the bottom of the machine, a stationary rug centrifuge Tornado WS-3200-55 is installed, into which carpets are placed immediately after washing with the help of a special trolley.
This model is equipped with three cleaning sections to ensure efficient and fast washing of rugs up to 9.8 ft wide. The washing process takes 6 to 8 minutes depending on the size and the degree of soiling of a rug.
-
Pre-soaking and spreading detergent on dry rugs
-
Brushing with 17 in wide cylindrical brushes, with smooth pressure adjustment up to 220 lb
-
Squeegeeing and rinsing rugs under pressure up to 2,175 psi using three nozzles with simultaneous softener dispensing

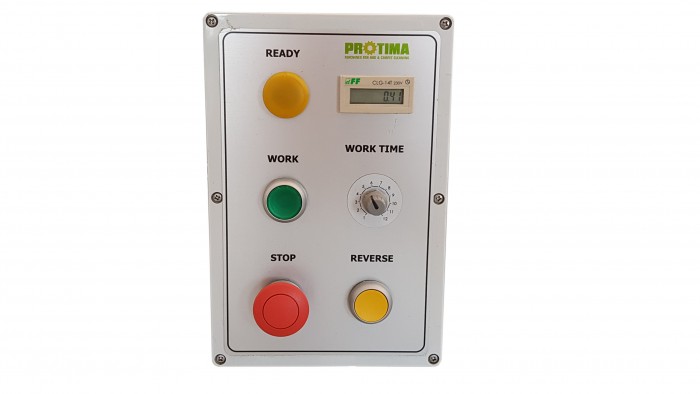

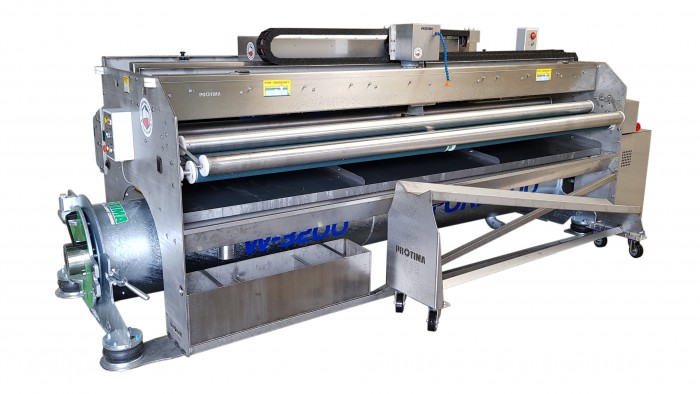

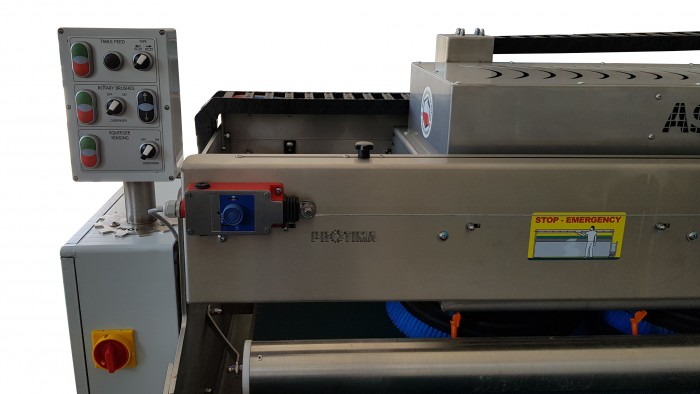

The Economic ASZ-3000 2-in-1 is additionally equipped with a movable pressure tube, which, when lifted, allows you to move the rolled carpet onto a transport trolley. The Rug Trolley WT-40 INOX facilitates placing rugs into the centrifuge. There is a water capture system at the bottom of the machine, so after filtering, used water can be reused in the machine or in Rug Wash Tubs Tornado MP-3000 INOX or P-3300 INOX. The device has been equipped with a very simple and intuitive main control panel connected to an auxiliary panel for switching off individual sections.
Key Advantages
• Working capacity up to 15 rugs per hour • Built-in carpet centrifuge 10.5 ft length • Simultaneous cleaning of 1 to 3 rugs • Possibility of simultaneous carpet washing and spinning (water removal) • Continuous operation without turning off the machine • Three cleaning sections • Installed high-pressure water jet unit 2,175 psi • Water gathering system • Two detergent dispensers • Simple and intuitive main control panel and auxiliary panel • Rug rolling-up function • Smooth pressure adjustment of brushes • Adjustable feed rate of the rug with reversibility • Two emergency switches • Engines and transmission components hidden behind protective shields ensuring 100% safety • Possibility of visual inspection of the rugs during the entire washing process • Easily operated by one person • Compact size allowing installation in most rug cleaning plants • Machine is delivered on wheels which allow easy transport and installation • Large space saving in the laundry
Technical Data
