Description

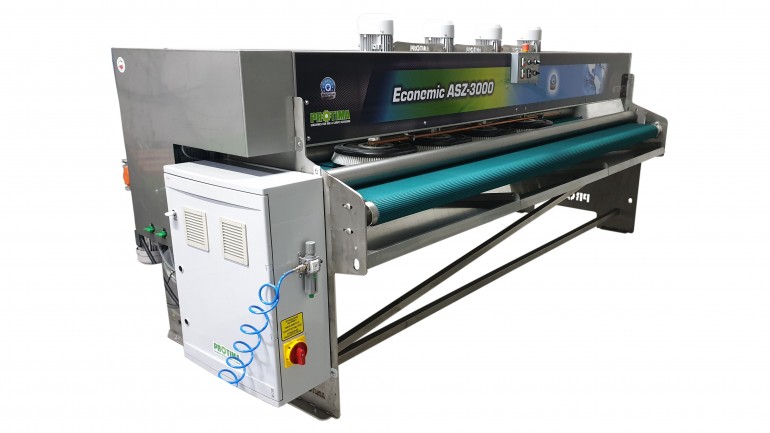

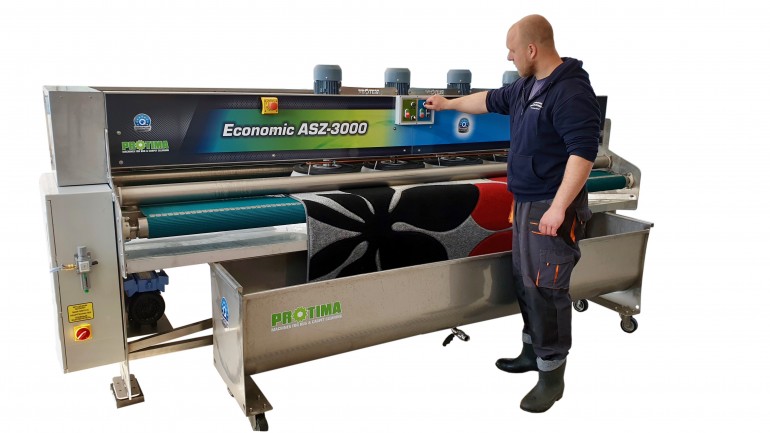

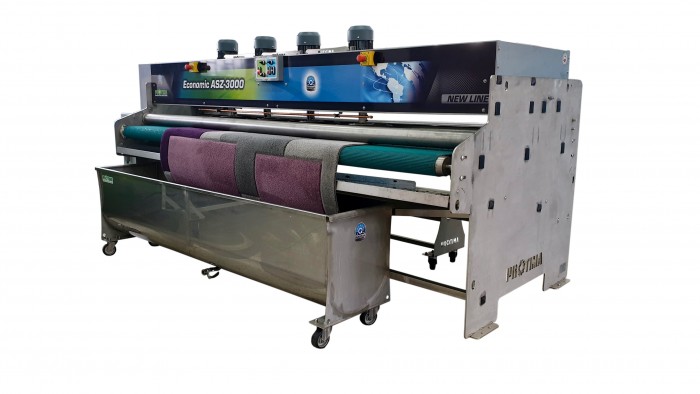

Automatic Rug Washing Machine Economic ASZ-3000 provides an economical and more compact option for automated washing and rinsing of rugs. Rugs can be placed into the system wet, following soaking in a Wash Tub, or can be placed into the system dry, following the Rug Duster. This model is designed with three sections of cleaning and rinsing of rugs up to 9 feet 10 inches wide. The washing process takes 6 – 8 minutes depending on the rug size and level of soiling. The machine is able to work with all types of brush choices (hard, medium, soft). Quick and easy brush replacement. An electric system for raising and lowering the rotary disc brushes.
The 3 sections of the machine are:
1. Pre-soaking and spray application of detergents. Application can be adjusted.
2. Row of four 17-inch rotary brushes with smooth pressure adjustment (up to 220 lbs.).
3. Squeegee and rinsing components, pressurized spray nozzles (adjustable up to 2175 psi), and a smooth roller bar to press away water and detergent.

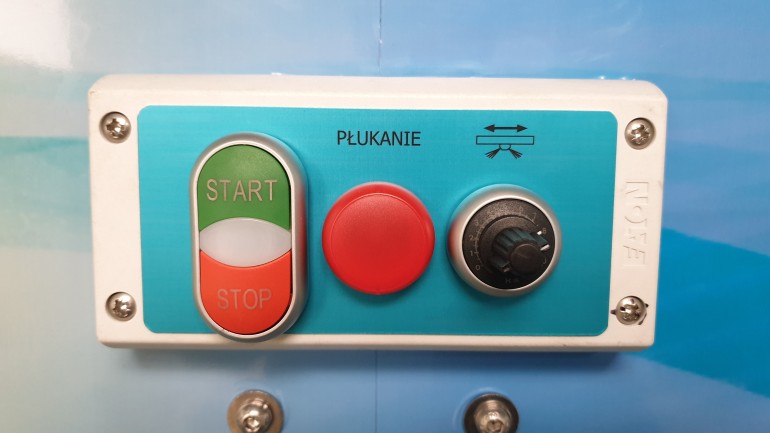

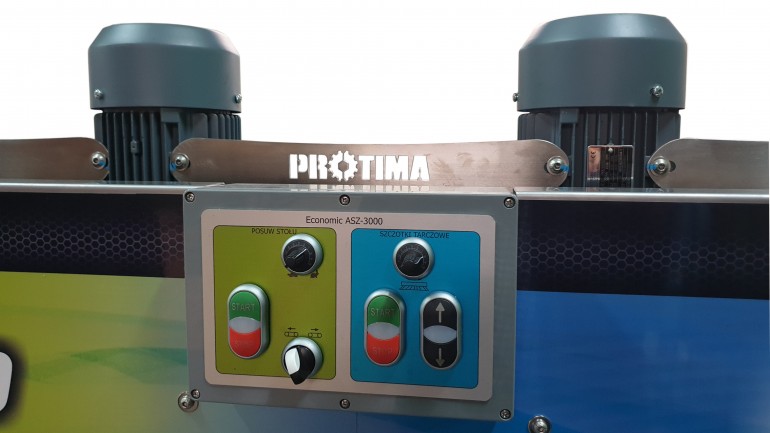

Economic ASZ-3000 has a very simple and intuitive main control panel, and an auxiliary panel for switching off individual sections. This design is easily operated by one person.

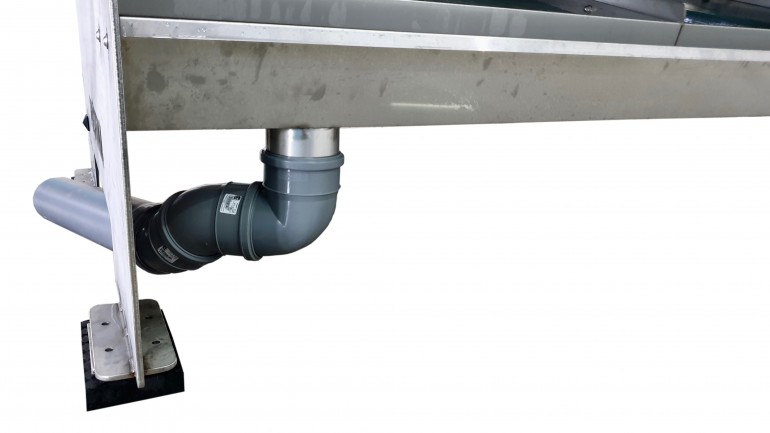

The system is designed with a movable pressure tube at the rinsing end which allows you to move the rinsed and rolled rug on to a Transport Trolley in order to move it for loading into the Centrifuge. There is a water capture system at the bottom of the machine for facilities that filter and recycle their water.
Key Advantages
Technical Data
